General description

PAD 31-74/50 is a fluid concentrate of fluorescent magnetic powder to be diluted in water, for wet magnetic particle inspection method.
The concentrate contains a anti-rust, surfactant, antifoam product and is totally nitrite-free.

PAD 31-74/50 is a low-sulfur and low-halogen product, in compliance with standards.

Packaging

1 l cans
Part Number: 01036114

In Compliance with

  • EN ISO 9934-2
  • ASME V Art. 7
  • ASTM E709
  • ASTM E1444
  • AMS 3044
  • AS 4792
  • PMUC (certificate of compliance upon request)

Features

  • Excellent sensitivity.
  • Excellent fluorescent contrast.
  • Excellent particle mobility.
  • Long-lasting particles.

Product Properties

Appearance
Red
Color in UV light
Bright yellow-green
Average particle size
3 μm

User Recommendations

NDT Method
Visible magnetic particle inspection, wet method
Shelf life

3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight

Usage temperature
< 48°C
Suspension vehicle
Water
Preliminary cleaning

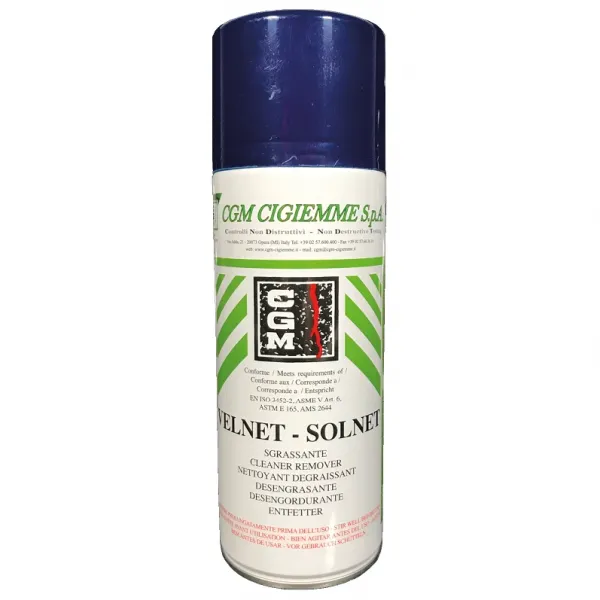

Velnet/Solnet
Recommended accessories according to standards ASTM E1444 ASTM E709 EN ISO 9934-2

Sedimentation glass tube – Magnetic Stripe Card Type 2000 – Reference Block Type I / MTU Test – Reference Block Type II – Flexible Laminated Strips – Tool Steel Ring AS 5282 Type and Ketos 01 Type – Octagonal flat plate
