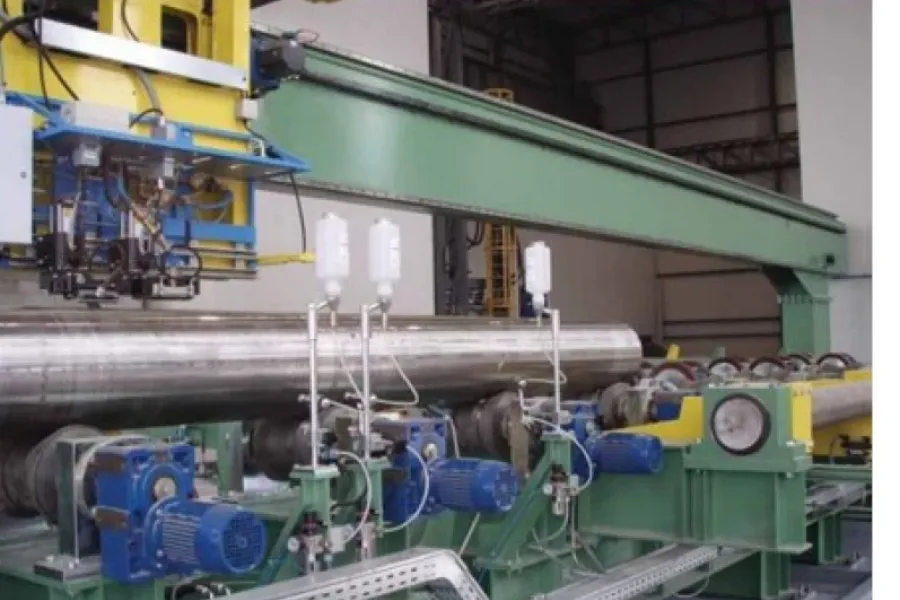

Inspection of large bars with portal system

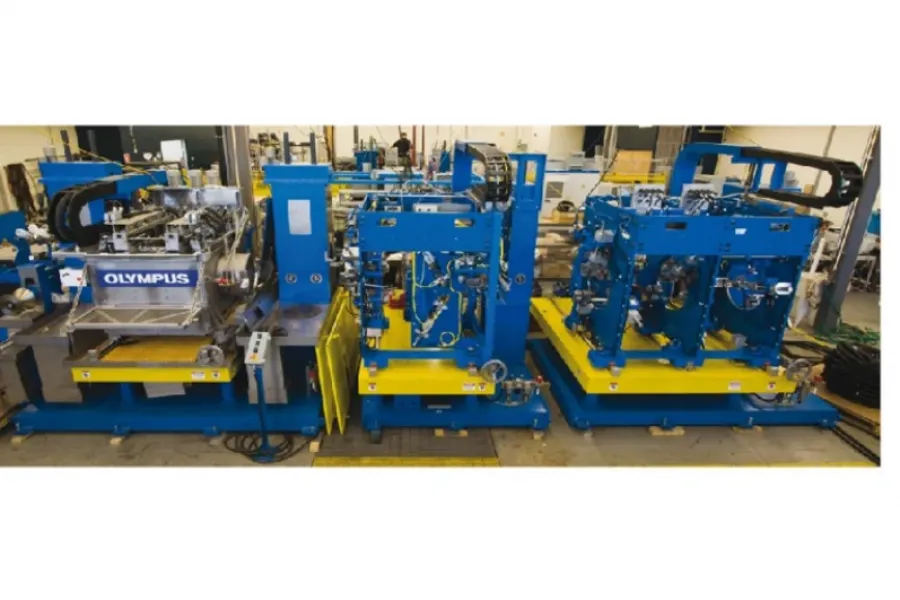

RBIS (Rotating Bar Inspection System)
100% automatic (calibration included) inspection systems, in rototranslation, using UT Phased Array and Eddy Current Array technology for round bars (sandblasted or rolled/peeled), in line or stand-alone, with high productivity (from 30 seconds to 8 minutes per piece). These are “turnkey” systems (manufactured in Canada and/or integrated by CGM).
Diameter range: 70 mm – 500 mm.
Sensitivity varies from FBH 0.7 mm upwards, based on the material’s structure (attenuation) and the diameter to be controlled.
100% coverage in vertical section; uncontrolled ends are about 5-10 mm.
This type of system fulfils the conditions required by the specific regulations for the Automotive, Nuclear and Aeronautical industry (NADCAP).
