Couplant U 47

Technical datasheet

General description

U 47 is a water-based transparent laminating gel. It is suitable for the most common applications under normal conditions of use for both defect and thickness checks. The presence of anti-corrosives prevents oxidation, so it is not essential to remove the gel after the check. The product is non-toxic to the skin, has no hazard labels and is not harmful to the environment.

Packaging

5 kg buckets

Part Number: 01049030

In Compliance with

  • ASME V Art.5 (T-533)

  • FAA AC 25-29 (glycerin free)

  • MIL-STD-271

  • PMUC (certificate of compliance upon request)

Features

  • Excellent coupling agent, suitable for different types of surfaces.

  • Excellent lubricant for ultrasonic transducers.

  • Excellent wettability of the surface under examination.

Product Properties

Appearance

Transparent gel
Recommended dilution in potable water

0 to 1:1

User Recommendations

NDT Method

Ultrasonic testing
Usage temperature

From 5°C to 80°C
Shelf life

3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight

Related products

Continue reading

Green Gel U 45

Technical datasheet

General description

Green Gel U 45 is a water-based thixotropic green coupling gel that can be used in the temperature range -20°C / 120°C. It is composed by anti-corrosive so as not to affect the surfaces being tested. Suitable for use on various types of surfaces, smooth or uneven, it is also recommended for non-optimal situations, such as vertical and underhead inspections. Moreover, as it fluoresces under UV light, it is easy to detect and remove. The product is non-toxic to the skin, has no hazard labelling and is not harmful to the environment.

Packaging

5 kg buckets

Part Number: 01049015

In Compliance with

  • ASME V Art.5 (T-533)

  • FAA AC 25-29 (glycerin free)

  • MIL-STD-271

  • PMUC (certificate of compliance upon request)

Features

  • Excellent coupling agent, suitable for different types of surfaces, smooth or irregular, and also recommended for non-optimal situations, such as overhead checks.

  • Fluorescent under UV light for an easy detection and removal.

  • Dry very slowly.

Product Properties

Appearance

Transparent green gel
Recommended dilution in potable water

0 to 1:1

User Recommendations

NDT Method

Ultrasonic testing
Usage temperature

From Da -20°C to 120°C
Shelf life

3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight

Related products

Continue reading

Hercules EX

Designed upon request of the military, Hercules is probably the most durable and shock-proof UV light in the world today, suitable for any “heavy duty” environment. It comes with explosion proof approvals and is tested to comply with ASTM E3022-18 and all PRIMES requirements, including Rolls-Royce RRES 90061 and Airbus AITM6-1001. Accidentally dropped it, kicked it, baked it in an oven, run it over by a tank? – it will still work! – The battery is inside the light; you don’t need to worry it got smashed like ordinary lights. Zero LEDs out from day of launch, 7 years ago! This unique light is battery powered and has four UV Leds that generate an intensity of 4000 µW/cm2.

Part Number Ref.
LA-L3000 L3000

Continue reading

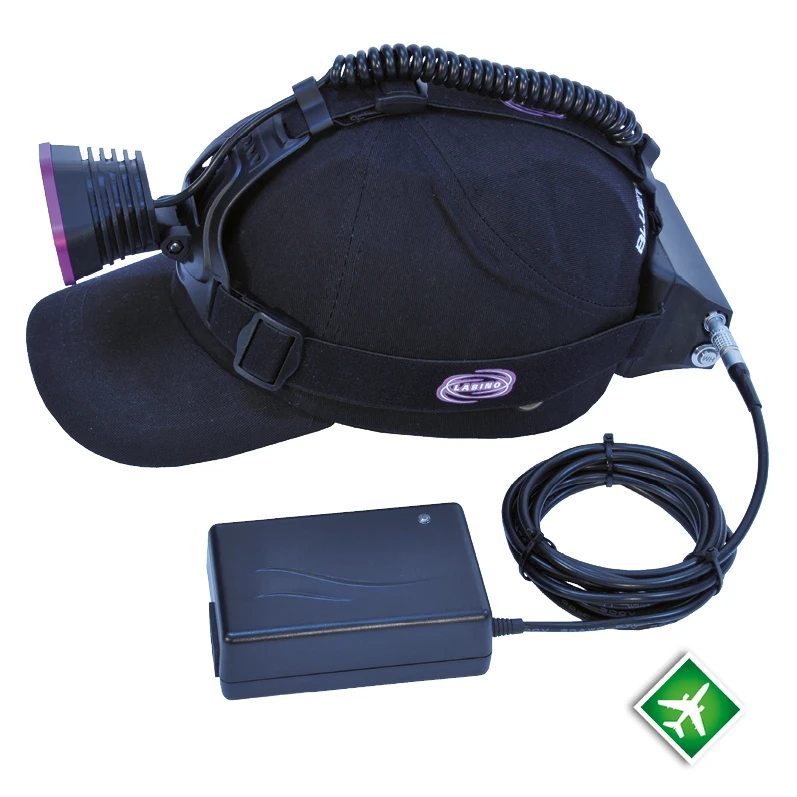

UVG5 2.0 Floodlight
