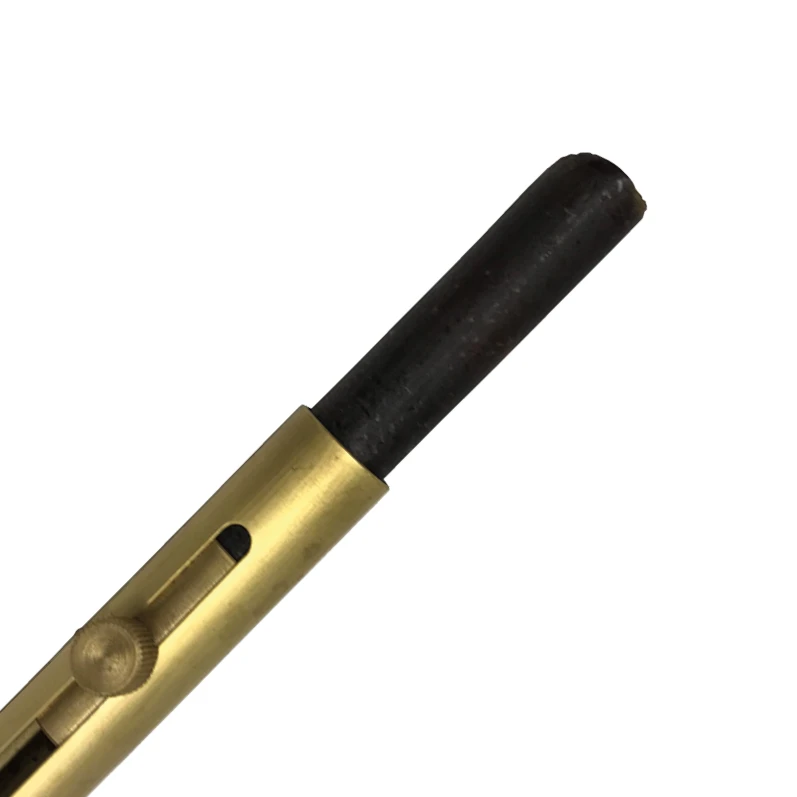

Rotvel Avio Stick

Technical datasheet

General description

The Rotvel Avio Stick is a color contrast penetrant for high temperature inspections with excellent resolution in detecting surface discontinuity indications. It generates an excellent red color contrast with good penetration characteristics. The penetrant is in the solid state; once in contact with the hot surface, it liquefies and penetrates into the possible discontinuities. For removal it is suggested to use a cloth soaked in Velemulsior H2O. Due to the remarkable penetrant fluidity , the formation of the indications is practically instantaneous after the application of the developer.

Packaging

Bags with 1 or more sticks

Part Number: 04099930

Features

  • Good penetration characteristics.

  • Intense and contrasting color.

  • Excellent discontinuities resolution.

Product Properties

Appearance

Opaque red solid

Method D
Sensitivity

Level 2

User Recommendations

NDT Method

High temperature dye liquid penetrat inspection


Usage temperature

From 50°C to 150°C

Recommended penetration time*

From 30 sec. to 3 min.

Developer

Rotrivel H2O Paste

Final cleaning

Velemulsior H2O

Shelf life

3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight

Accessories EN ISO 3452

Stick holder

* For temperatures between 50°C and 80°C, the application time will be approximately 2-3 minutes. For temperatures between 80°C and 100°C, the application time will be approximately 1-2 minutes. For temperatures between 100°C and 150°C, the application time will be approximately 30 sec.-1 min.
