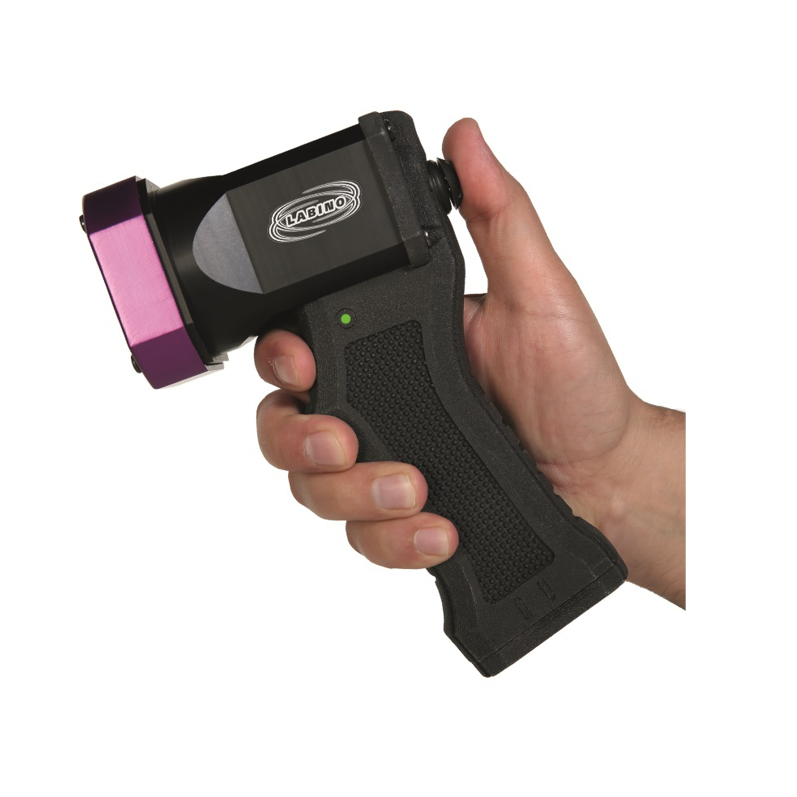

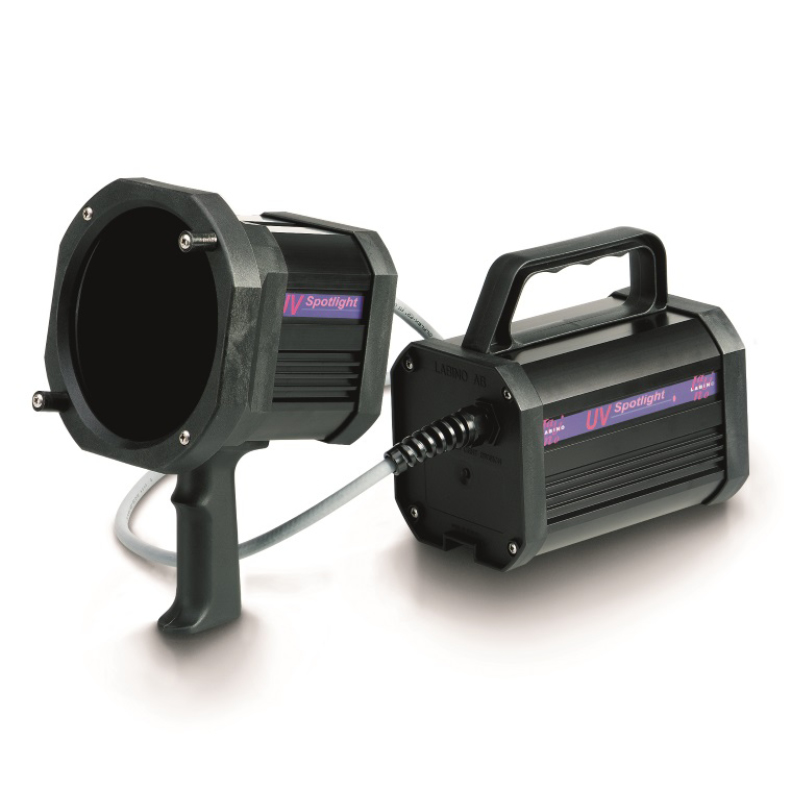

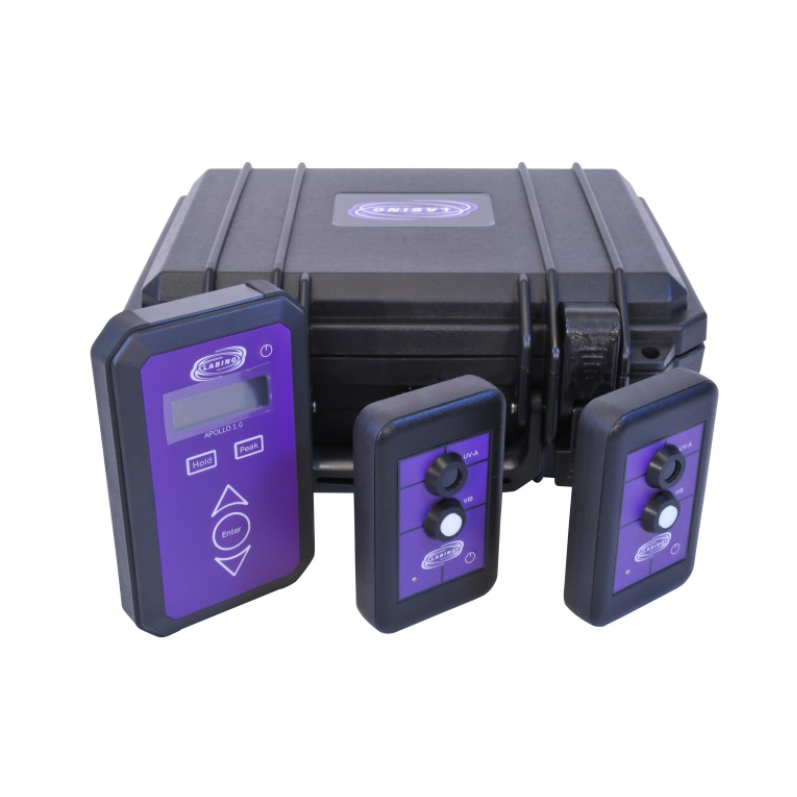

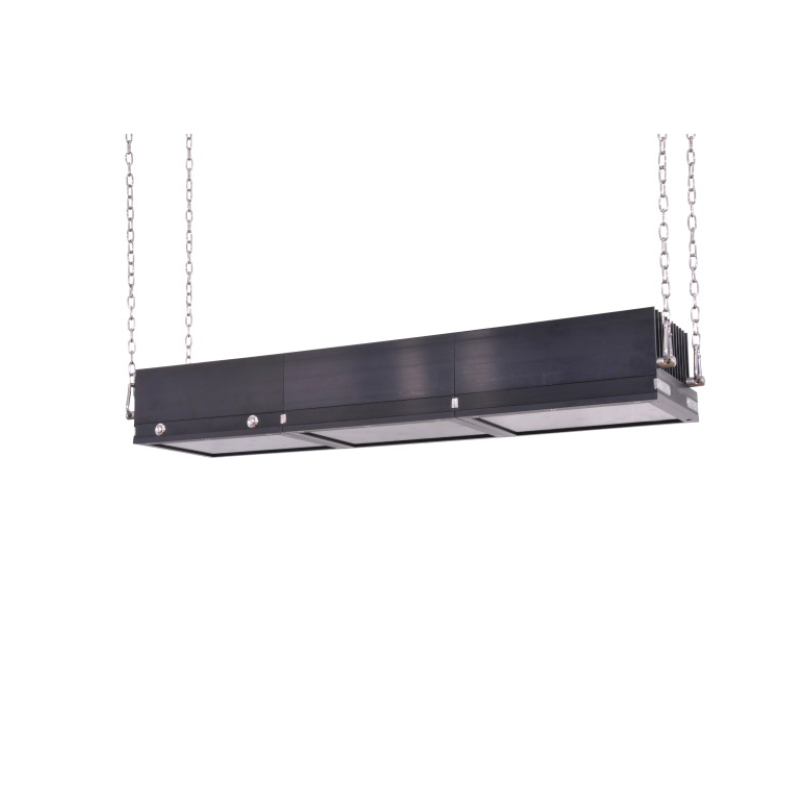

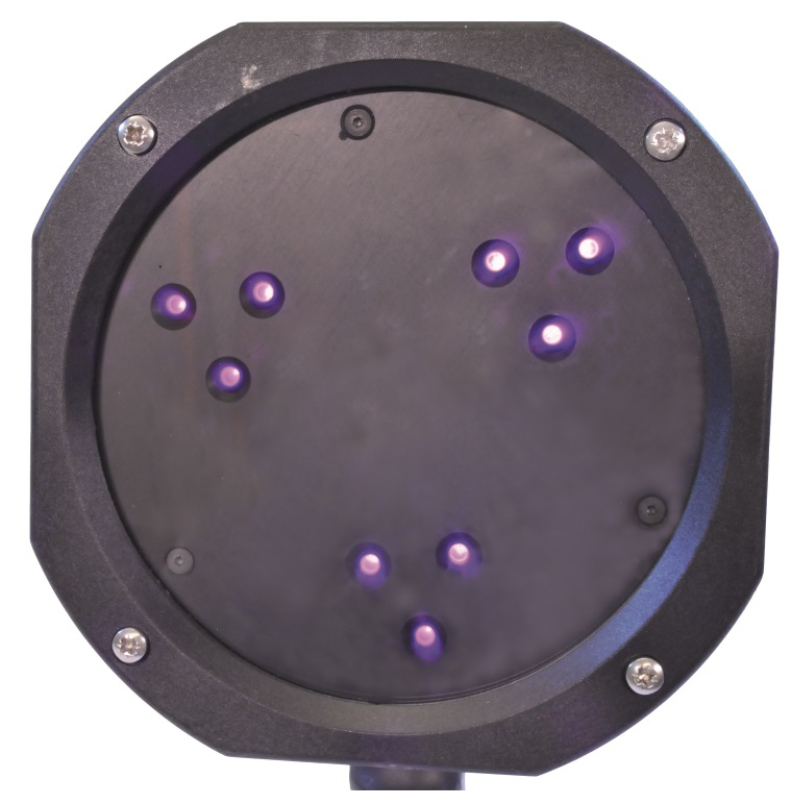

UV lamps

CGM CIGIEMME S.p.A. has been supporting for years in the choice of
its lamps at LABINO, a leading company in the production of quality UV
lighting systems, the result of years of experience.

In the wide range, you can find UV lamps, white light lamps,
battery-powered portable or electrically powered one and fixed ceiling
lights.

LABINO solutions are equipped with all the certifications required by
the market.

Below is the link to the Swedish company’s website: labino.com

Continue reading

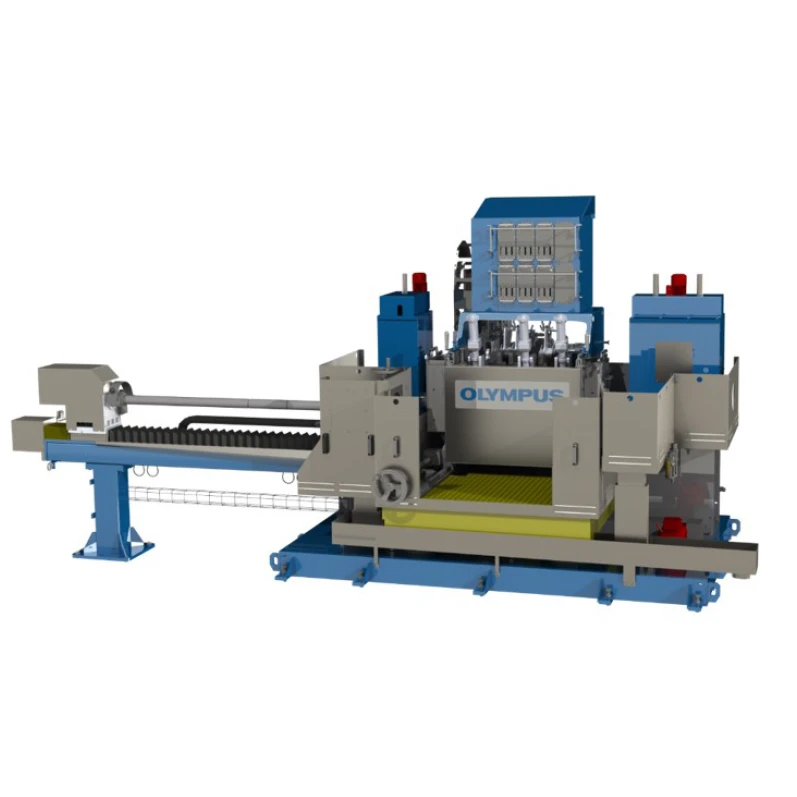

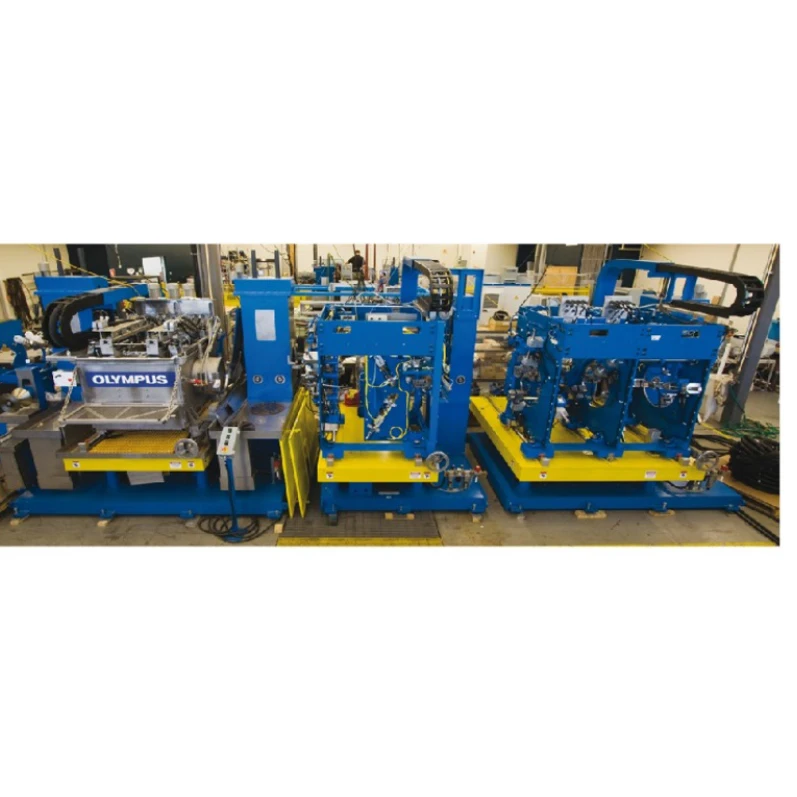

Round and square bars in line inspection

BIS (Bar Inspection System)

100% automatic (calibration included), pass-through inspection systems using UT Phased Array and Eddy Current Array technology for round and square bars (black, sandblasted and rolled/peeled bars) in line, with high productivity (testing speed up to 2m/s). These are “turnkey” systems (manufactured in Canada and/or integrated by CGM).

  • T1 for testing of round bars (10 ÷ 65 mm). Maximum sensitivity FBH 0.7 mm, testing speed from 0.5 to 2 m/s, based on the hardware configuration of the system, the type of defect being sought and the material’s surface and straightness conditions.

  • T2 for testing of round (20 ÷ 100 mm, or 25 ÷ 125 mm) and square (30 ÷115 mm) bars. Maximum sensitivity FBH 0.7 mm, testing speed from 0.5 to 2 m/s, based on the hardware configuration of the system, the type of defect being sought and the material’s surface and straightness conditions.

  • T4 for testing of round (80 ÷ 250 mm) and square (90 ÷ 240 mm) bars. Maximum sensitivity FBH 0.8 mm, testing speed from 0.3 to 1 m/s, based on the hardware configuration of the system, the type of defect being sought and the material’s surface and straightness conditions.

The UT Phased Array technology allows simultaneous inspection with longitudinal (LW) and transverse (SW) waves, ensuring 100% coverage of the cross section (with detection of internal, subsurface and superficial defects). The uncontrolled ends are approximately 30 mm for T1 and T2 and 50 mm for T4.

The Eddy Current Array technology allows the detection of longitudinal, transverse and oblique surface defects. The minimum detectable depth is about 0.2 mm (it varies according to the material’s surface condition).

This type of system fulfils the conditions required by the specific regulations for the Automotive, Nuclear and Aeronautical industry (NADCAP).

Related products

Continue reading

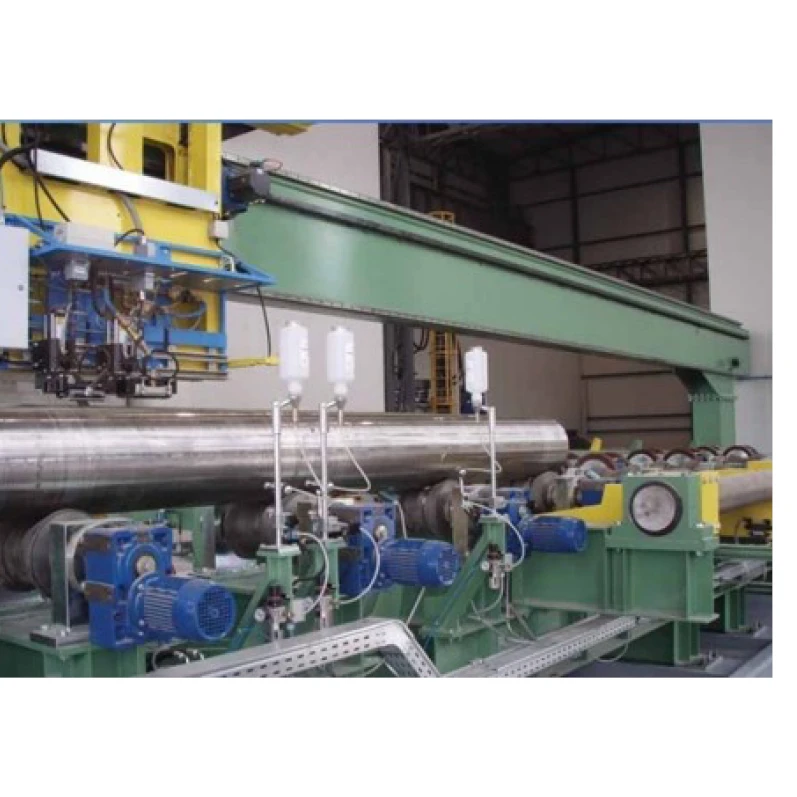

Inspection of large bars with portal system

RBIS (Rotating Bar Inspection System)

100% automatic (calibration included) inspection systems, in rototranslation, using UT Phased Array and Eddy Current Array technology for round bars (sandblasted or rolled/peeled), in line or stand-alone, with high productivity (from 30 seconds to 8 minutes per piece). These are “turnkey” systems (manufactured in Canada and/or integrated by CGM).

Diameter range: 70 mm – 500 mm.

Sensitivity varies from FBH 0.7 mm upwards, based on the material’s structure (attenuation) and the diameter to be controlled.

100% coverage in vertical section; uncontrolled ends are about 5-10 mm.

This type of system fulfils the conditions required by the specific regulations for the Automotive, Nuclear and Aeronautical industry (NADCAP).

Related products

Continue reading

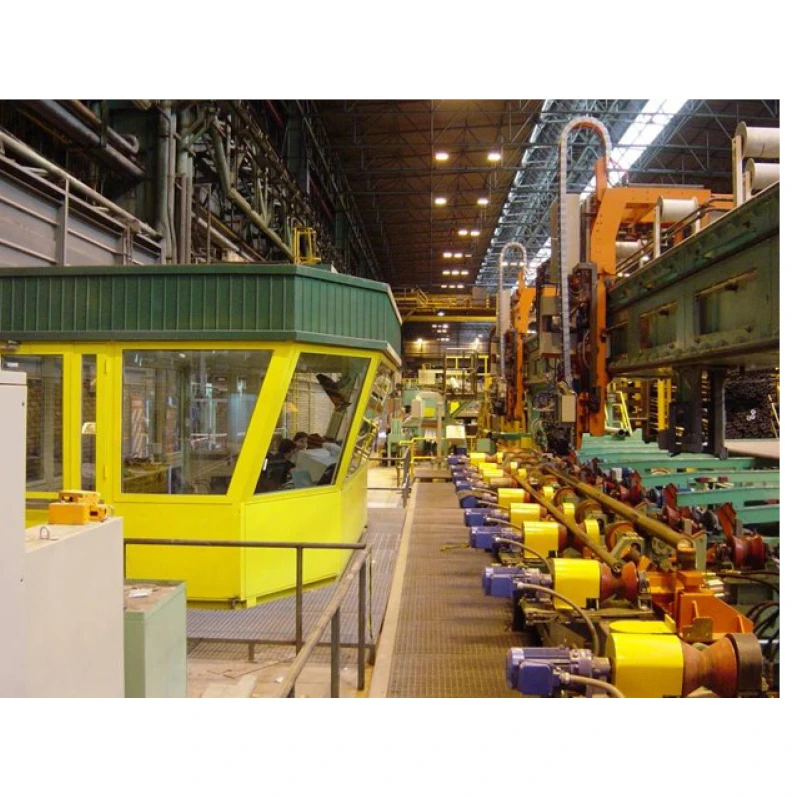

With and without welding pipes inspection

Pipe Inspection System

100% automatic (calibration included) inspection systems, in rototranslation, which use UT Phased Array technology for rolled, extruded or welded pipes, in line or stand-alone, with high productivity (from 30 seconds to 8 minutes per piece). These are “turnkey” systems (manufactured in Canada and/or integrated by CGM).

These systems are able to detect subsurface and surface defects (internal and external surface of the pipe) of any orientation in a single passage, but also specific defects such as cavities, thickness variations and conical defects.

This type of systems fulfils the requirements of all the regulations in force for the nuclear and Oil&Gas industry.

Related products

Continue reading

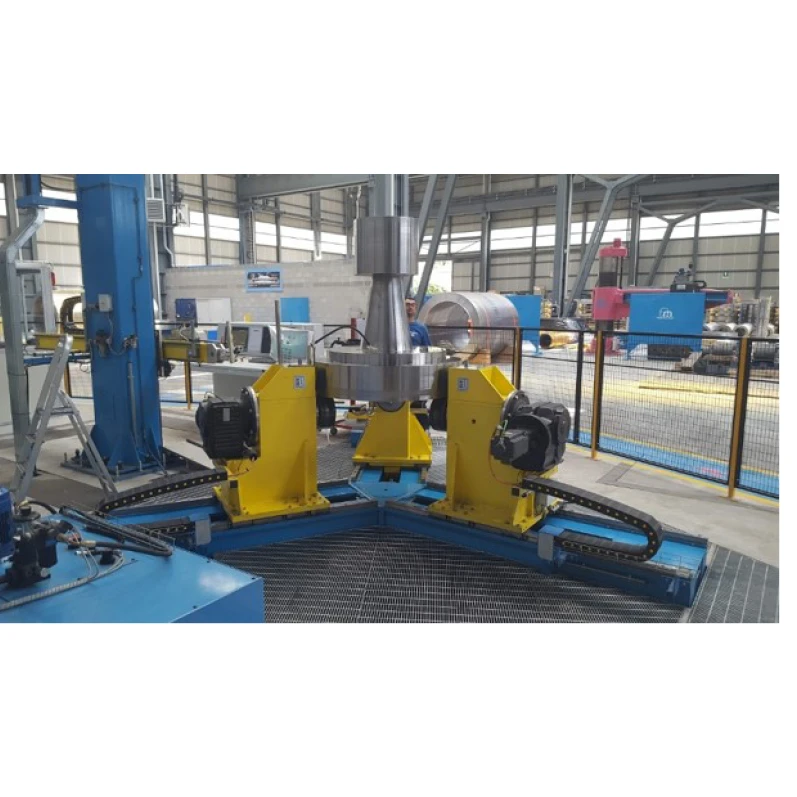

Forged inspection

Forgings inspection systems

Highly automated inspection systems, using conventional UT technology or Phased Array for forgings, stand-alone. These are “turnkey” systems, manufactured by CGM and integrated with Evident (Olympus) electronics, probes and software.

This type of systems fulfils all the conditions required by the regulations in force for the Energy industry, but also the technical specifications of many turbine manufacturers (GE, Siemens, Samsung, Ansaldo, etc.).

These are customized systems, designed to satisfy the specific requests of each customer.

Type of products: discs, bushings, rings and alike (vertical piece axis), or shafts, forged pipes and alike (horizontal piece axis).

Related products

Continue reading

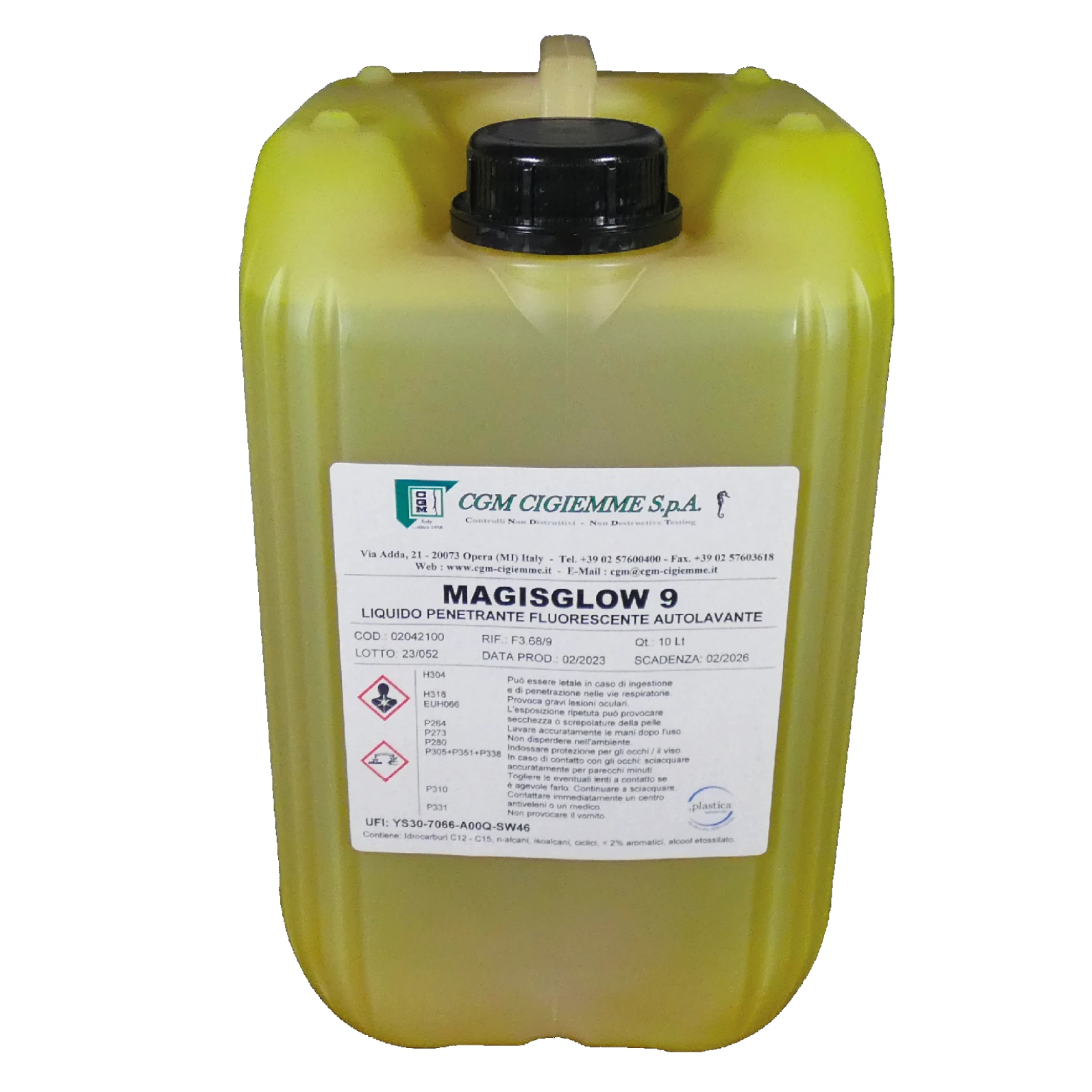

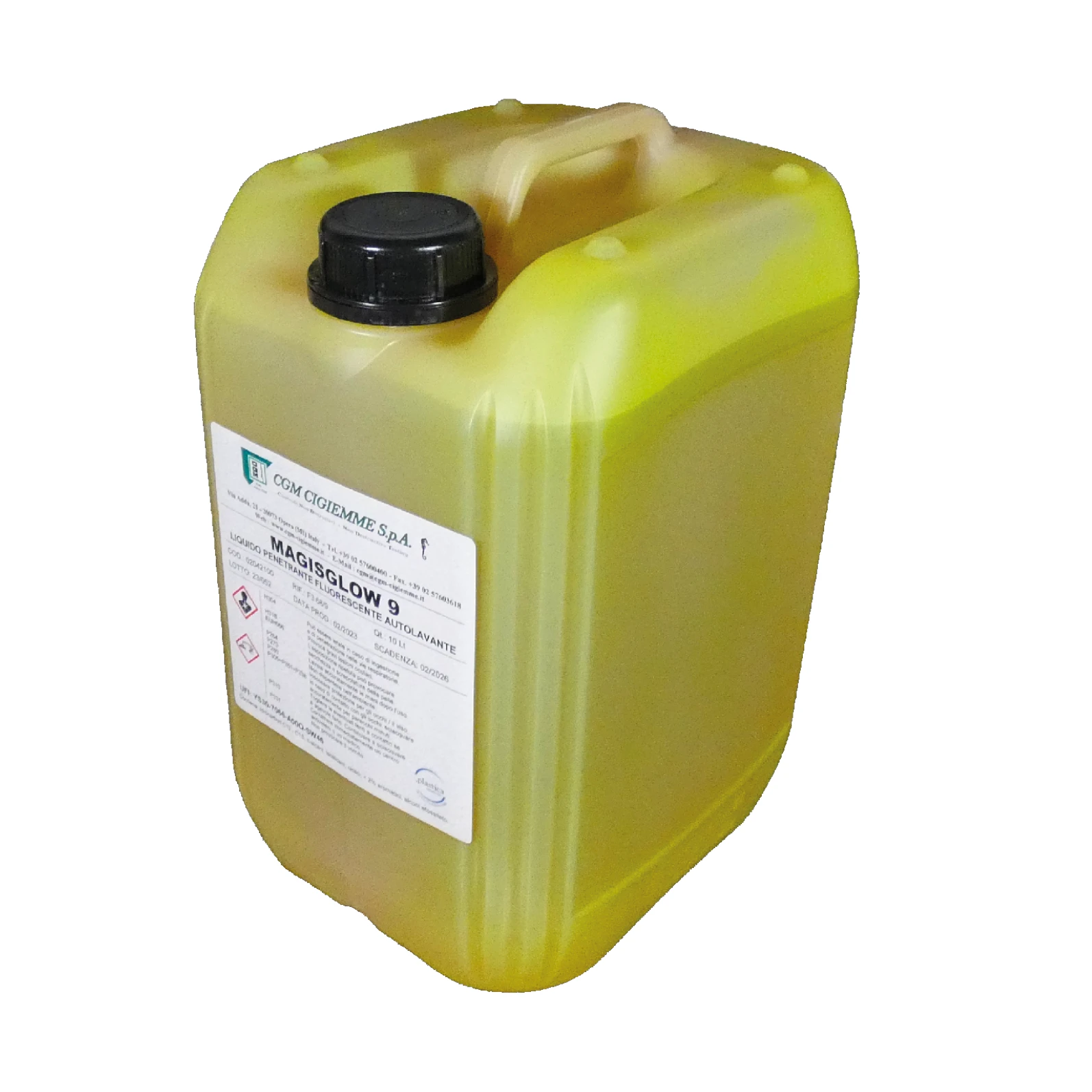

Magisglow 9

Technical datasheet

General description

Magisglow 9 is a water-washable fluorescent penetrant with excellent washability. It corresponds to the intermediate sensitivity level and is widely used in various applications and industrial sectors. It is characterized by excellent penetration characteristics and excellent reliability in identifying open defects on the surfaces with defect dimensions detectable using a level 2 penetrant.

Packaging

10 l cans Part Number: 02042100
200 l metal drums //

In Compliance with

  • ASME BPVC-V
  • ASTM E165/E165M-18
  • ASTM E1417/E1417M
  • EN ISO 3452-2
  • AMS 2644 (Complies with the standard, but not included in the QPL list)
  • PMUC (certificate of compliance upon request)

Features

  • Good penetration characteristics.
  • Intense and extremely bright color.
  • Excellent discontinuity resolution.

  • Wide range of applications.
  • Excellent washability.

Product Properties

Appearance Yellow-green
Type / Method Type 1 / Method A
Sensitivity Level 2

User Recommendations

NDT Method Water washable fluorescent liquid penetrant inspection
Usage temperature From 4°C to 52°C
ASTM E165/UNI EN ISO 3452-1
Preliminary cleaning Velnet/Solnet
Recommended penetration time*

From 10 to 20 min.

Developer Rotrivel U − Velcontrast Dry Powder − Rotrivel H2O Paste
Final cleaning

Water – Velnet/Solnet – Detergent H2O

Shelf life

3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight

Accessories EN ISO 3452 Reference block type 1
Reference block type 2

* The times indicated refer to working temperatures between 10 and 52°C, for temperatures between 4 and 10°C the times indicated must be doubled.

Related products

Continue reading

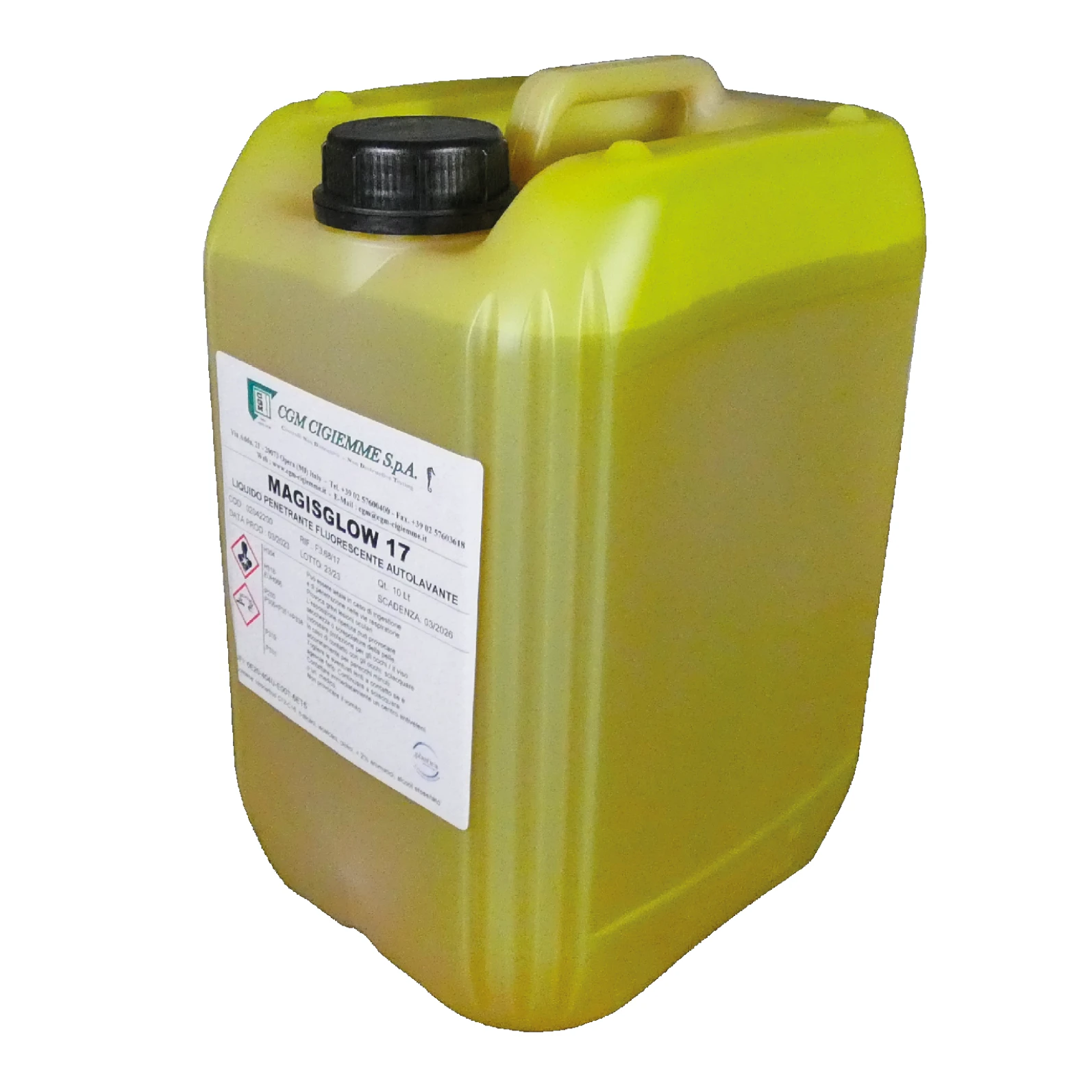

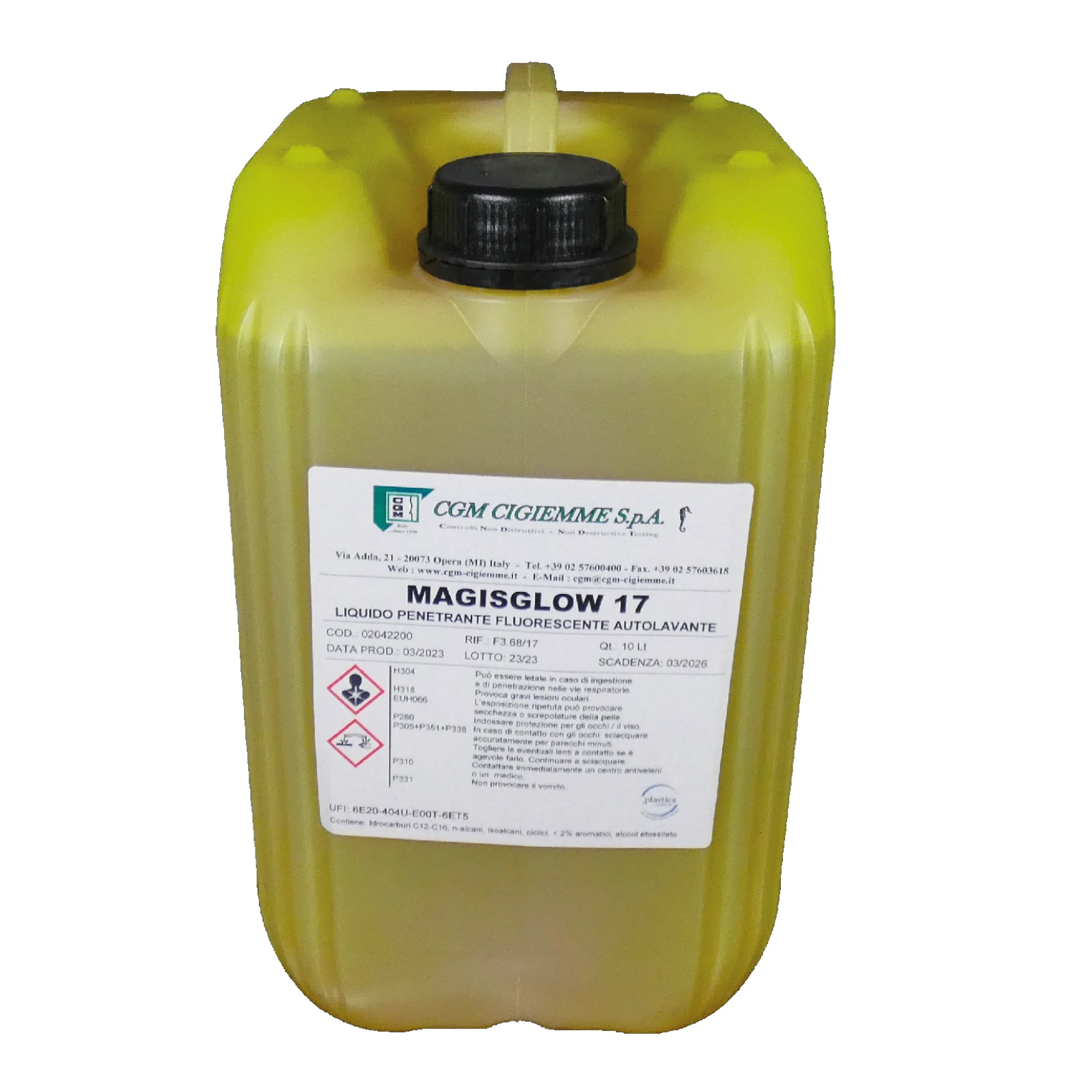

Magisglow 17

Technical datasheet

General description

Magisglow 17 is a water-washable fluorescent penetrant with excellent washability. It can be used in a wide range of applications with excellent penetration characteristics and excellent reliability in identifying open defects on the surface with defect dimensions detectable using a level 3 penetrant.

Packaging

10 l cans Part Number: 02042200
200 l metal drums //

In Compliance with

  • ASME BPVC-V
  • ASTM E165/E165M-18
  • ASTM E1417/E1417M
  • EN ISO 3452-2
  • AMS 2644 (Complies with the standard, but not included in the QPL list)
  • PMUC (certificate of compliance upon request)

Features

  • Excellent penetration characteristics.
  • Intense and extremely bright color.
  • Excellent discontinuity resolution.

  • Wide range of applications.
  • Excellent washability.

Product Properties

Appearance Yellow-green
Type / Method Type 1 / Method A
Sensitivity Level 3

User Recommendations

NDT Method Water washable fluorescent liquid penetrant inspection
Usage temperature From 4°C to 52°C
ASTM E165/UNI EN ISO 3452-1
Preliminary cleaning Velnet/Solnet
Recommended penetration time*

From 10 to 20 min.

Developer Rotrivel U − Velcontrast Dry Powder − Rotrivel H2O Paste
Final cleaning

Water – Velnet/Solnet – Detergent H2O

Shelf life

3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight

Accessories EN ISO 3452 Reference block type 1
Reference block type 2

* The times indicated refer to working temperatures between 10 and 52°C, for temperatures between 4 and 10°C the times indicated must be doubled.

Related products

Continue reading

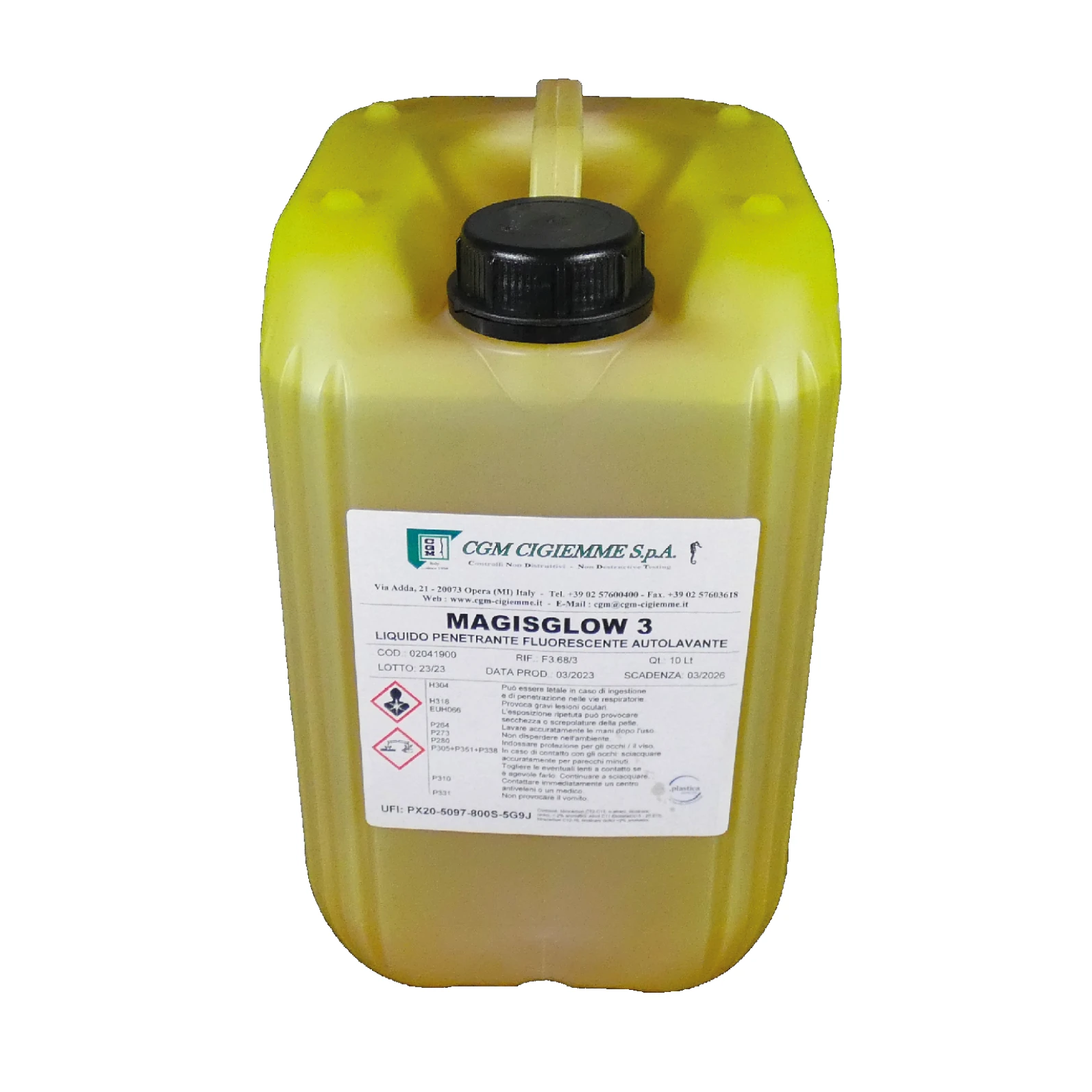

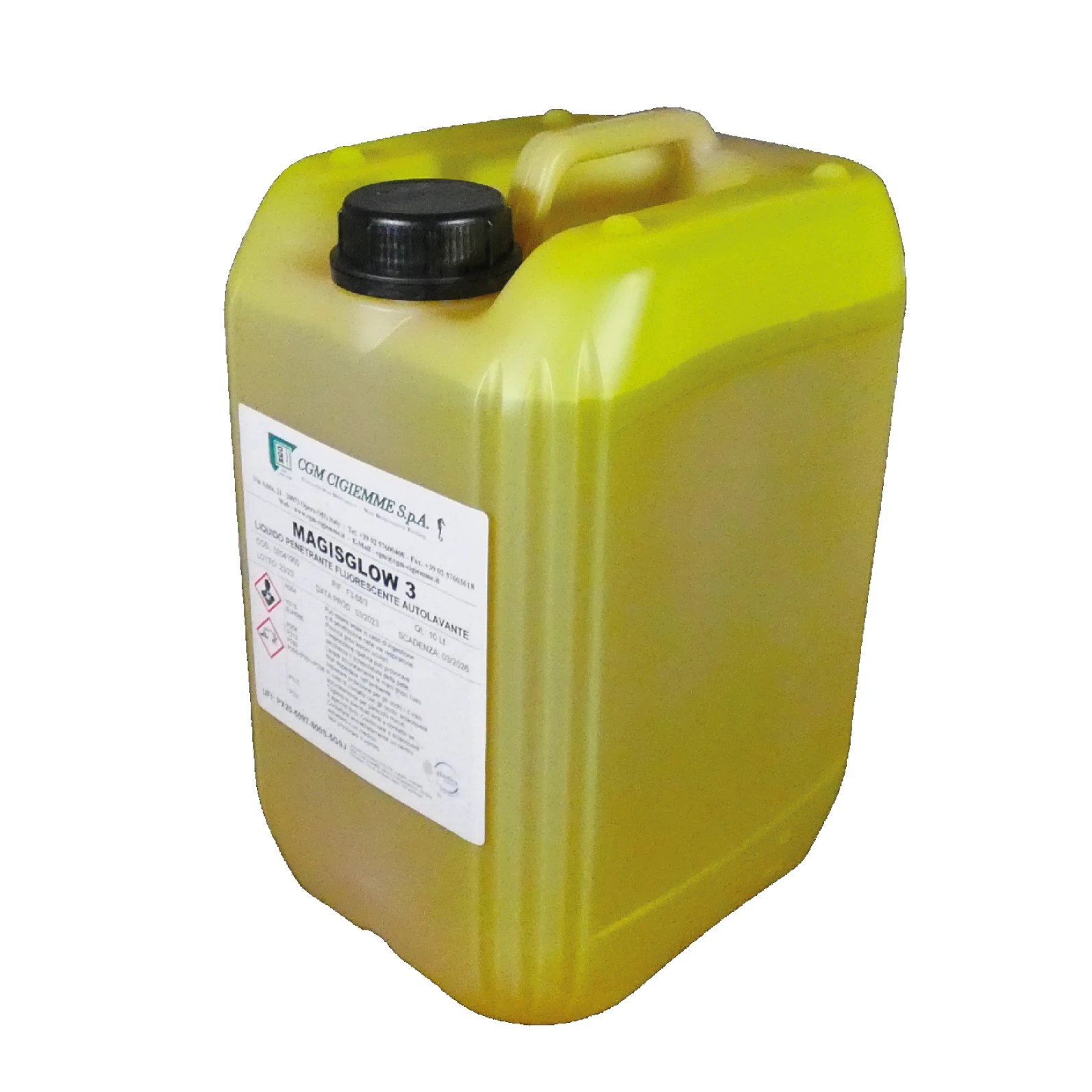

Magisglow 3

Technical datasheet

General description

Magisglow 3 is a water-washable fluorescent penetrant characterized by excellent washability. It can be used in a wide range of applications with excellent penetration characteristics and excellent reliability in identifying open defects on the surface with defect dimensions detectable using a level 1 penetrant.

Packaging

10 l cans Part Number: 02041900
200 l metal drums //

In Compliance with

  • ASME BPVC-V
  • ASTM E165/E165M-18
  • ASTM E1417/E1417M
  • EN ISO 3452-2
  • AMS 2644 (Complies with the standard, but not included in the QPL list)
  • PMUC (certificate of compliance upon request)

Features

  • Good penetration characteristics.
  • Intense and extremely bright color.
  • Good discontinuity resolution.
  • Wide range of applications.
  • Excellent washability.

Product Properties

Appearance Yellow-green
Type / Method Type 1 / Method A
Sensitivity Level 1

User Recommendations

NDT Method Water washable fluorescent liquid penetrant inspection
Usage temperature From 4°C to 52°C
ASTM E165/UNI EN ISO 3452-1
Preliminary cleaning Velnet/Solnet
Recommended penetration time*

From 10 to 20 min.

Developer Rotrivel U − Velcontrast Dry Powder − Rotrivel H2O Paste
Final cleaning

Water – Velnet/Solnet – Detergent H2O

Shelf life

3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight

Accessories EN ISO 3452 Reference block type 1
Reference block type 2

* The times indicated refer to working temperatures between 10 and 52°C, for temperatures between 4 and 10°C the times indicated must be doubled.

Related products

Continue reading

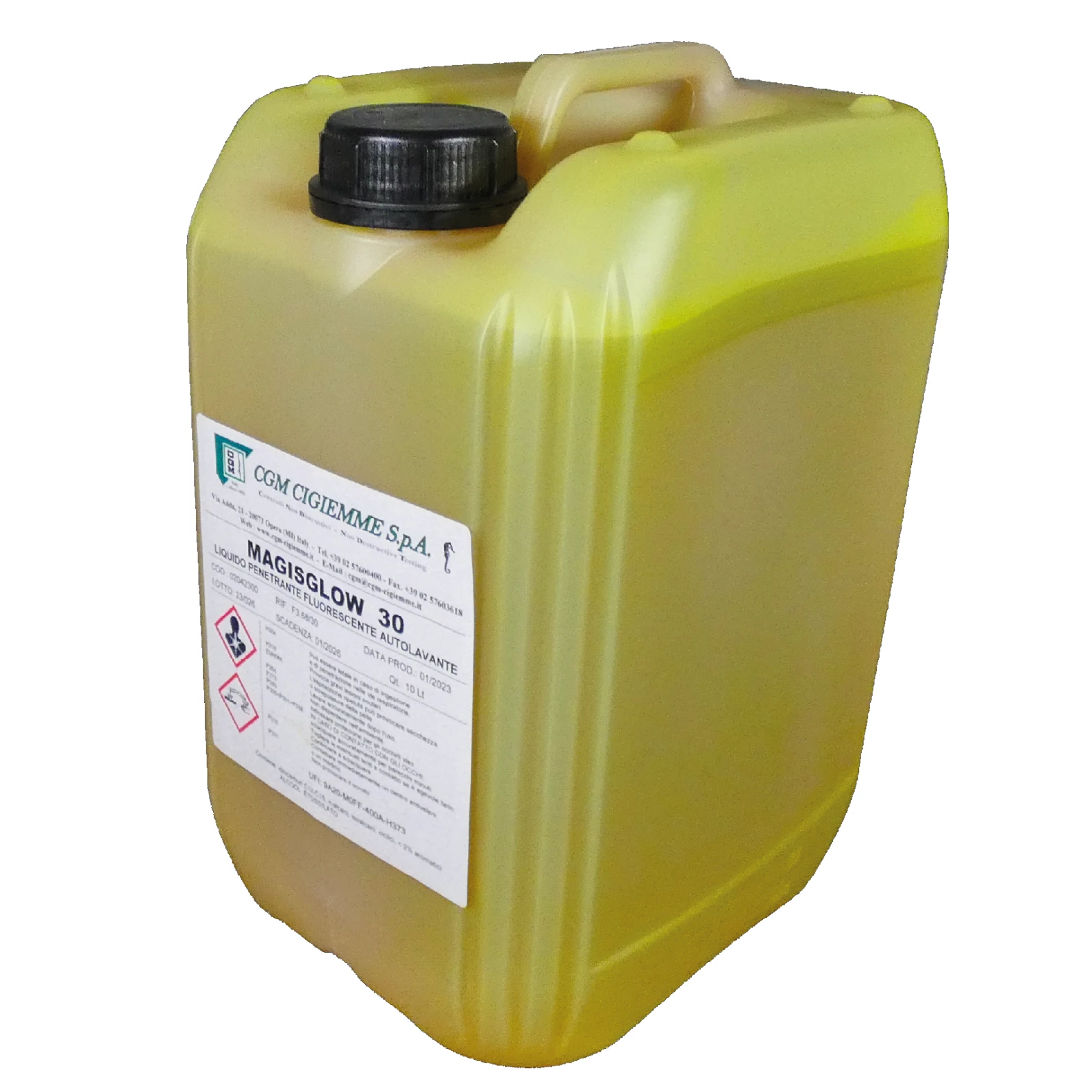

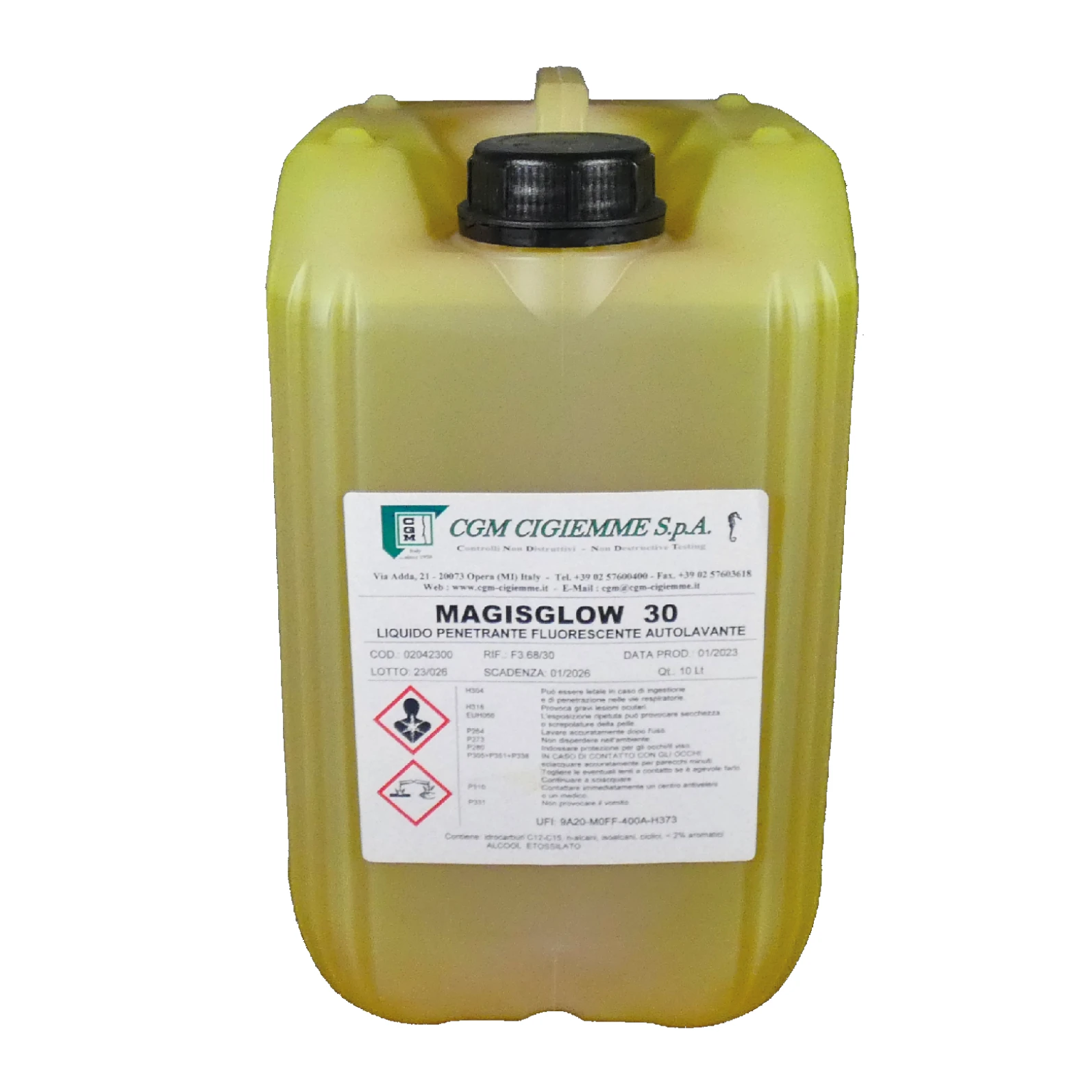

Magisglow 30

Technical datasheet

General description

Magisglow 30 is a high sensitivity water-washable fluorescent penetrant. It can be used in a wide range of applications, guaranteeing excellent penetration characteristics and excellent reliability in detecting surface open defects. This liquid penetrant is also ideal for checking welding defects such as holes/porosities, as its high penetration capability reduces inspection time and allows the detection of small defects.

Packaging

10 l cans Part Number: 02042300
400 ml spray Part Number: 03042310
200 l metal drums //

In Compliance with

  • ASME BPVC-V
  • ASTM E165/E165M-18
  • ASTM E1417/E1417M
  • EN ISO 3452-2
  • AMS 2644 (Complies with the standard, but not included in the QPL list)
  • PMUC (certificate of compliance upon request)

Features

  • Excellent penetration characteristics.
  • Intense and extremely bright color.
  • Excellent discontinuity resolution.

  • Wide range of applications.
  • Excellent washability.

Product Properties

Appearance Yellow-green
Type / Method Type 1 / Method A
Sensitivity Level 4

User Recommendations

NDT Method Water washable fluorescent liquid penetrant inspection
Usage temperature From 4°C to 52°C
ASTM E165/UNI EN ISO 3452-1
Preliminary cleaning Velnet/Solnet
Recommended penetration time*

From 10 to 20 min.

Developer Rotrivel U − Velcontrast Dry Powder − Rotrivel H2O Paste
Final cleaning

Water – Velnet/Solnet – Detergent H2O

Shelf life

3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight

Accessories EN ISO 3452 Reference block type 1
Reference block type 2

* The times indicated refer to working temperatures between 10 and 52°C, for temperatures between 4 and 10°C the times indicated must be doubled.

Related products

Continue reading
