Magisglow 22

Technical datasheet

General description

Magisglow 22 is a post-emulsifiable fluorescent penetrant with good penetration characteristics and with excellent resolution when detecting open surface discontinuity indications with dimensions detectable using a level 1 penetrant. This penetrant can be removed with a hydrophilic / lipophilic emulsifier, or solvent.

Packaging

10 l cans Part Number: 02032500
200 l metal drums //

In Compliance with

  • ASME Sect. V Art. 6

  • ASTM E165

  • EN ISO 3452-2

  • AMS 2644 (Complies with the standard, but not included in the QPL list)

Features

  • Good penetration characteristics.

  • Intense and contrasting colour.

  • Brilliant indications.

  • Minimal background fluorescence.

  • Wide range of applications.

  • Immiscible with water, therefore protected against excessive removal during washing.

  • High flash point.

  • Wide range of application methods.

  • Low odor.

  • Compatibility with many different types of metal alloys.

Product Properties

Appearance Yellow-green
Type / Method Type 1 / Method B, C, D
Sensitivity

Level 1

User Recommendations

NDT Method Post-emulsifiable fluorescent liquid penetrant inspection
Usage temperature From 4°C to 52°C
ASTM E165/UNI EN ISO 3452-1
Preliminary cleaning Velnet/Solnet
Recommended penetration time*

From 10 to 20 min.
Emulsifier

Velemulsior
Developer Rotrivel U − Velcontrast Dry Powder − Rotrivel H2O Paste
Final cleaning

Velnet Solnet – Detergent H2O
Shelf life

3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight
Accessories EN ISO 3452 Reference block type 1
Reference block type 2

* The times indicated refer to working temperatures between 10 and 52°C, for temperatures between 4 and 10°C the times indicated must be doubled.

Related products

Continue reading

Rotrivel U Spray

Technical datasheet

General description

Spray version of the fast-evaporating, non-aqueous, non-halogenated solvent-based developer that creates an opaque white background for high-contrast inspection. The product’s high quality allows for a uniform and thin application which leads to reduced consumption of the penetrant. It can also be used to quickly check for “bleeding”, obtaining bright and clear indications. The developer is easily removable using the Velnet/Solnet product.

Packaging

400 ml spray Part Number: 03011210
10 l cans Part Number: 02011200
200 l metal drums //

In Compliance with

  • ASME V Art. 6

  • ASTM E165/E165M

  • ASTM E1417/E1417M

  • UNI EN ISO 3452-2 (Sensitivity level 4)

  • AMS 2644 (Complies with the standard, but not included in the QPL list)

Features

  • Milky white color.

  • Easy to apply.

  • Dries quickly.

  • Generates a very contrasting background.

  • Maximum sensitivity.

  • Easy to remove.

Product Properties

Appearance Milky white
Type / Method Method D – for Type 1 penetrants
Method E – for Type 2 and Type 3 penetrants
Flash point ≈ -20°C

User Recommendations

NDT Method Color contrast and fluorescent liquid penetrant inspection
Shelf life 3 years at T between 0°C and 45°C
Usage temperature From 0°C to 52°C
Cleaning Velnet/Solnet
It can be used with all types of CGM penetrants

RED WW – Rotvel Avio B – Magisglow 3 – Magisglow 9 – Magisglow 17 – Magisglow 30 …etc.

Related products

Continue reading

Velemulsior H2O Spray

Technical datasheet

General description

Spray version of the hydrophilic emulsifier used to emulsify the excess of post emulsifiable penetrants before final washing. This product is formulated to minimize the penetrant’s background on rough surfaces without increasing the risk of removing it from within the discontinuities.

Packaging

400 ml spray Part Number: 03071610
10 l cans Part Number: 02071600

In Compliance with

  • ASME Sect. V – Art. 6

  • ASTM E165/E165M-18

  • EN ISO 3452-2

Features

  • Reduces bleeding from cavities.

  • It can be used in a wide range of concentrations.

  • Excellent removability control.

Product Properties

Appearance

Transparent liquid
Method

D
Flash Point

Not flammable

User Recommendations

NDT Method Post-emulsifiable fluorescent liquid penetrant inspection
Shelf life 3 years at T between 5°C and 45°C
Usage temperature From 4°C to 52°C
ASTM E165/UNI EN ISO 3452-1
Post-emulsifiable penetrants Magisglow 22-27-46-54
Accessories EN ISO 3452 Reference block type 1
Reference block type 2
Refractometer 101 ATC Model

Related products

Continue reading

Magisglow 30 Spray

Technical datasheet

General description

Spray version of the high sensitivity water-washable fluorescent penetrant Magisglow 30. It can be used in a wide range of applications, demonstrating superior penetration characteristics and highest level of reliability when detecting open surface defects. This liquid penetrant is also ideal for checking welding defects such as through holes/porosities thanks to high level of penetration capacity which reduces examination time and ensures the detection of small defects.

Packaging

400 ml spray Part Number: 03042310
10 l cans Part Number: 02042300
200 l metal drums //

In Compliance with

  • ASME BPVC-V

  • ASTM E165/E165M-18

  • ASTM E1417/E1417M

  • EN ISO 3452-2

  • AMS 2644 (Complies with the standard, but not included in the QPL list)

Features

  • Excellent penetration characteristics.

  • Intense and extremely bright color.

  • Good discontinuity resolution.

  • Wide range of applications.

  • Excellent washability.

Product Properties

Appearance Yellow-green
Type / Method Type 1 / Method A
Sensitivity Level 4

User Recommendations

NDT Method Water washable fluorescent liquid penetrant inspection
Usage temperature From 4°C to 52°C
ASTM E165/UNI EN ISO 3452-1
Preliminary cleaning Velnet/Solnet
Recommended penetration time*

From 10 to 20 min.
Developer Rotrivel U − Velcontrast Dry Powder − Rotrivel H2O Paste
Final cleaning

Water – Velnet/Solnet – Detergent H2O
Shelf life

3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight
Accessories EN ISO 3452 Reference block type 1
Reference block type 2

* The times indicated refer to working temperatures between 10 and 52°C, for temperatures between 4 and 10°C the times indicated must be doubled.

Related products

Continue reading

Rotvel Avio B Spray

Technical datasheet

General description

Spray version of Rotvel Avio B, a water washable / solvent removable red dye penetrant with excellent resolution in detecting indications of surface discontinuity. It generates a high level of red color contrast, combined with good penetration characteristics. The penetrant is characterized by excellent washability which allows to reduce background marks and false indications. The excellent washability also allows savings in terms of time and water consumption. The penetrant is designed to guarantee performance as Level 2, in compliance with applicable standards.

Packaging

400 ml spray Part Number: 03021810
10 l cans Part Number: 02021810
200 l metal drums //

In Compliance with

  • ASME Sect. V – Art. 6

  • ASTM E165

  • EN ISO 3452-2/5/6

  • PMUC

  • AMS 2644 (Complies with the standard, but not included in the QPL list)

Features

  • Good penetration characteristics.

  • Intense and contrasting color.

  • Good resolution of discontinuities – water removal.

  • Excellent discontinuity resolution – solvent removal.

  • Wide range of applications.

  • Excellent washability in a wide range of temperatures and penetration times.

Product Properties

Appearance Red
Type / Method Type II / Method A-C
Sensitivity Level 2

User Recommendations

NDT Method Water or solvent washable dye liquid penetrant inspection
Usage temperature

From 4°C to 52°C
UNI EN ISO 3452-5 e 6
Preliminary cleaning Velnet/Solnet
Recommended penetration time*

From 5 to 10 min.
Developer Rotrivel U
Final cleaning

Water – Velnet/Solnet – Detergent H2O
Shelf life

3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight
Accessories EN ISO 3452 Reference block type 1
Reference block type 2

* The times indicated refer to working temperatures between 10 and 52°C, for temperatures between 4 and 10°C the times indicated must be doubled.

Related products

Continue reading

RED WW Spray

Technical datasheet

General description

Spray version of RED WW, a water-washable red dye penetrant with good resolution in detecting indications of surface discontinuity. It generates a high level of red color contrast with good penetration characteristics. The penetrant is characterized by excellent washability which allows to reduce background marks and false indications. The excellent washability also allows savings in terms of time and water consumption. The penetrant is designed to guarantee performance as Level 1, in compliance with applicable standards.

Packaging

400 ml spray Part Number: 03011110
10 l cans Part Number: 02042100
200 l metal drums //

In Compliance with

  • ASME Sect. V – Art. 6

  • ASTM E165

  • EN ISO 3452-2

  • AMS 2644 (Complies with the standard, but not included in the QPL list)

Features

  • Good penetration characteristics.

  • Intense and contrasting color.

  • High discontinuity resolution.

  • Wide range of applications.

  • Excellent washability in a wide range of temperatures and penetration times.

Product Properties

Appearance Red
Type / Method Type 2 / Method A
Sensitivity Level 1

User Recommendations

NDT Method Water washable dye liquid penetrant inspection
Usage temperature From 4°C to 52°C
ASTM E165/UNI EN ISO 3452-1
Preliminary cleaning Velnet/Solnet
Recommended penetration time*

From 5 to 10 min.
Developer Rotrivel U
Final cleaning

Water – Velnet/Solnet – Detergent H2O
Shelf life

3 years at T between 5°C and 45°C, in a dry place safe from direct sunlight
Accessories EN ISO 3452 Reference block type 1
Reference block type 2

* The times indicated refer to working temperatures between 10 and 52°C, for temperatures between 4 and 10°C the times indicated must be doubled.

Related products

Continue reading

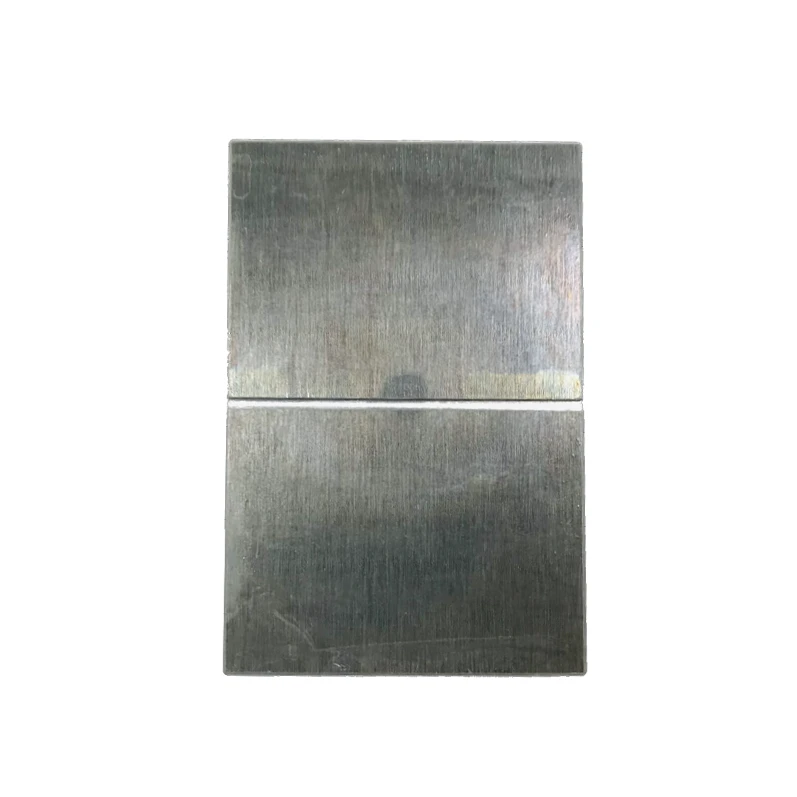

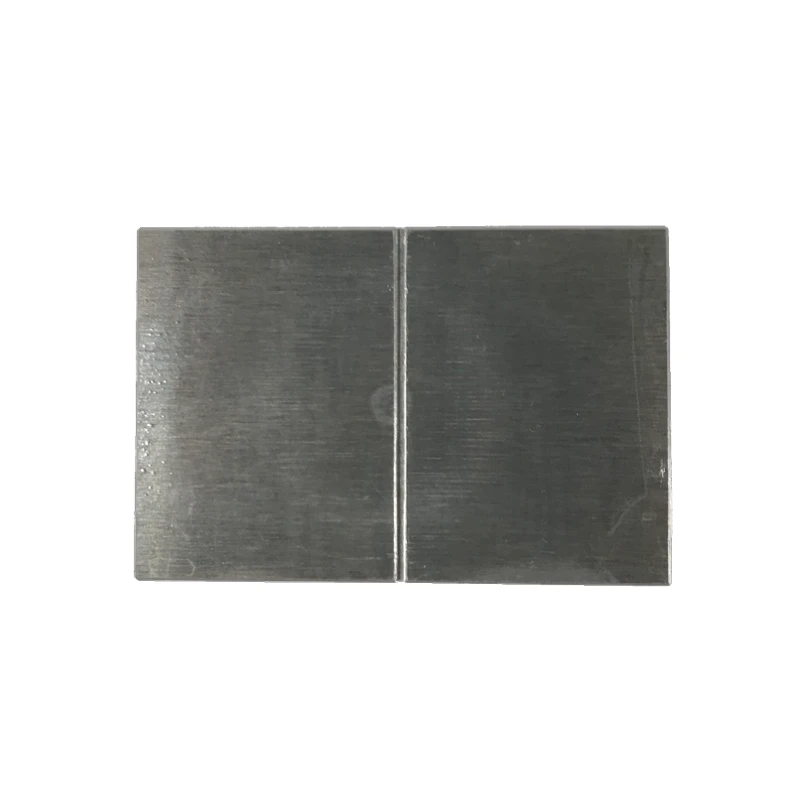

Liquid Penetrant Comparator Block

Aluminum Sensitivity Test Block is used to verify the performance of the penetrant liquid at nonstandard temperatures. The block is made from 2024 aluminum and is 3” x 2” x 3/8” thick. A 1/8” wide groove separates the block’s two sides in order to facilitate side-by-side comparison.

In compliance with: ASTM E 165; ASME Sec.V; MIL-I-25135

Part Number Ref.
04099804 98.2

Related products

Continue reading

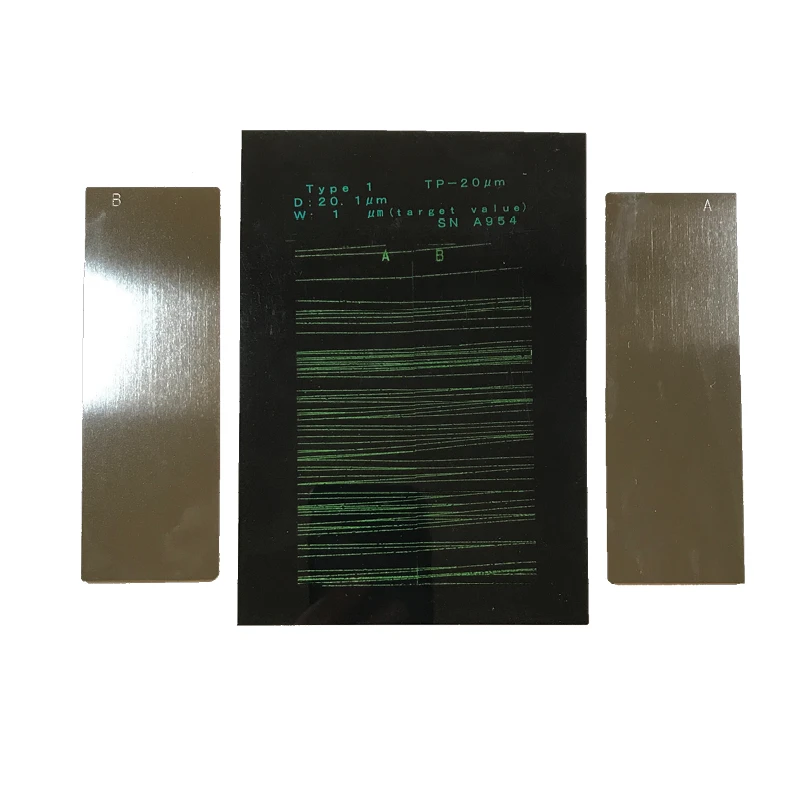

Pair of Test Panel Nickel 10-20-30-50 Micron

A set of two panels made by plating a brass panel first with brittle nickel, then with chrome. The panels are approx. 1.5” (36 mm) in width and 4” (101 mm) in length, are machined from the same stock and have corresponding cracks. They are particularly effective in assessing the penetrant inspection system’s ability to detect surface discontinuities. It results to be very handy for simultaneous comparison of the penetrants from two batches. Sold in sets of two, with photographs.

In compliance with: ISO 3452-3 TYPE 1; ASTM E1417; AMS 2647D; JIS Z 2343-3

Part Number Ref.
04099810: Pair of NiCr − 10μ Test Panel 98.6/1
04099811: Pair of NiCr − 20μ Test Panel 98.6/2
04099812: Pair of NiCr − 30μ Test Panel 98.6/3
04099813: Pair of NiCr − 50μ Test Panel 98.6/4
