Velemulsior H2O

Technical datasheet

General description

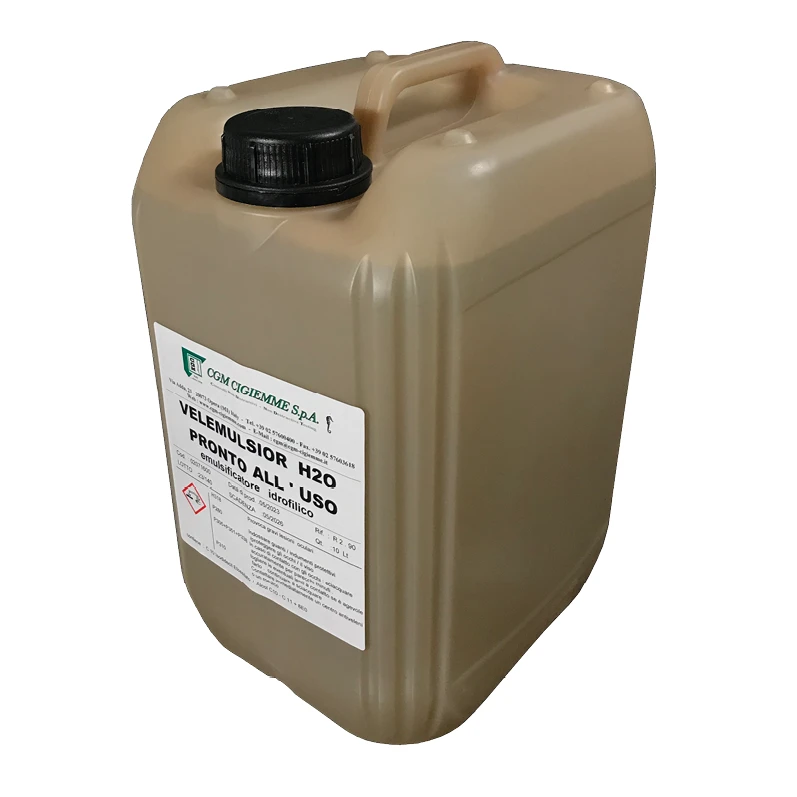

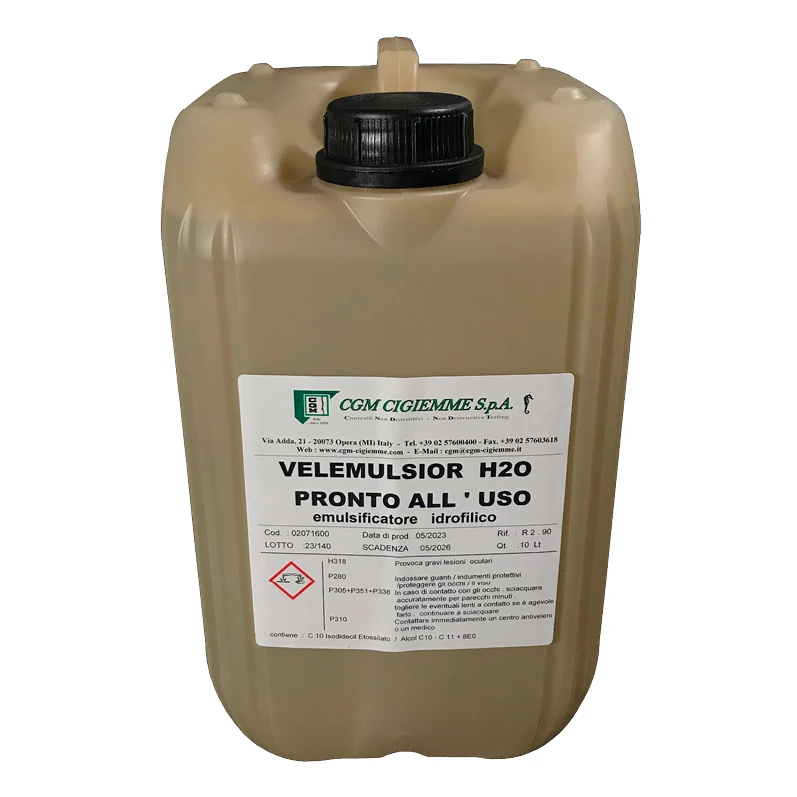

Velemulsior H2O is a hydrophilic emulsifier used to emulsify the excess of post emulsifiable penetrants before final washing. This product is formulated to minimize the penetrant’s background on rough surfaces without increasing the risk of removing it from within the discontinuities.

Packaging

10 l cans Part Number: 02071600
400 ml spray Part Number: 03071610

In Compliance with

  • ASME Sect. V – Art. 6
  • ASTM E165/E165M-18
  • EN ISO 3452-2
  • PMUC (certificate of compliance upon request)

Features

  • Reduces bleeding from cavities.
  • It can be used in a wide range of concentrations.
  • Excellent removability control.

Product Properties

Appearance Transparent liquid
Method D
Flash Point Not flammable

User Recommendations

NDT Method Post-emulsifiable fluorescent liquid penetrant inspection
Shelf life 3 years at T between 5°C and 45°C
Usage temperature From 4°C to 52°C
ASTM E165/UNI EN ISO 3452-1
Post-emulsifiable penetrants

Magisglow 22-27-46-54

Developer Rotrivel U − Velcontrast Dry Powder − Rotrivel H2O Paste
Accessories EN ISO 3452 Reference block type 1
Reference block type 2
Refractometer 101 ATC Model

Related products

Continue reading

Velemulsior H2O High Concentration

Technical datasheet

General description

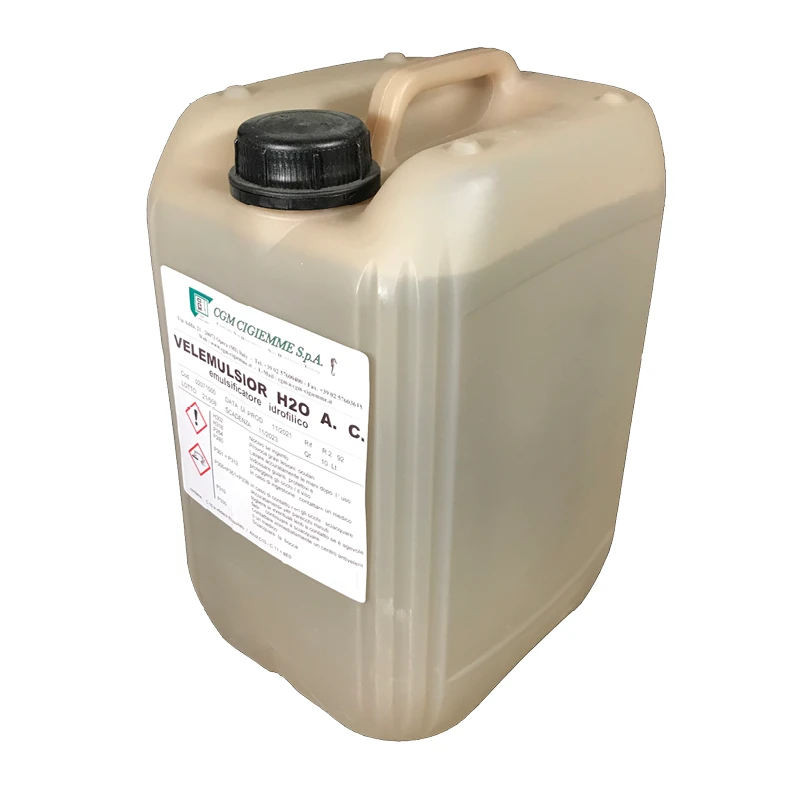

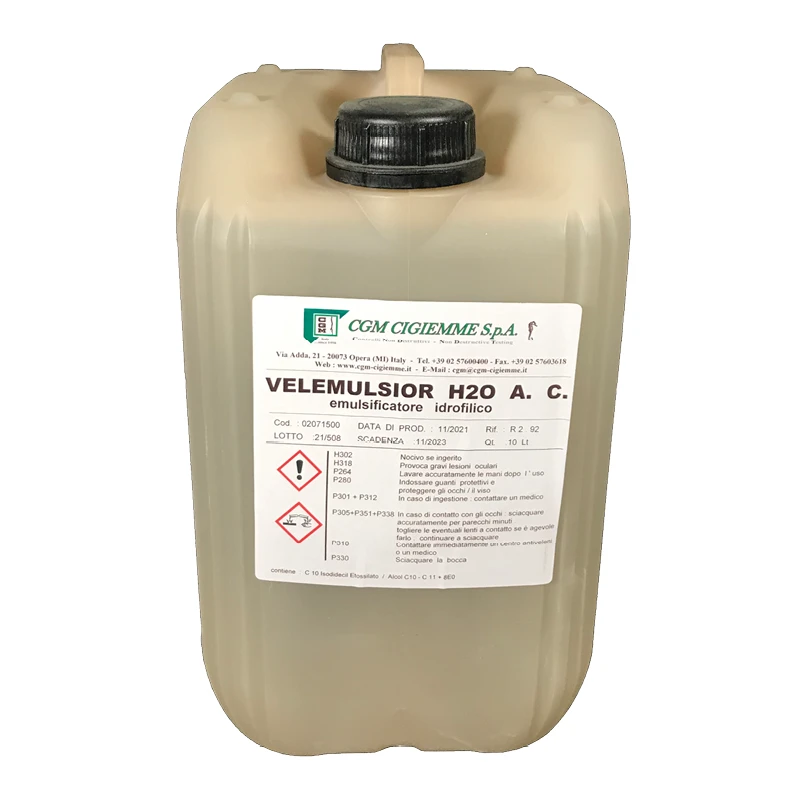

Velemulsior H2O High Concentration is a concentrated hydrophilic emulsifier to be diluted in water, used for the emulsification/removal of post-emulsifiable penetrants. This product is formulated to minimize penetrant background on rough surfaces, as well as to reduce penetrant leakage from hollow parts. It is supplied as a concentrate to be diluted in water with a concentration of 10% to 30%.

Packaging

10 l cans Part Number: 02071500

In Compliance with

  • ASME Sect. V – Art. 6
  • ASTM E165/E165M-18
  • EN ISO 3452-2
  • PMUC (certificate of compliance upon request)

Features

  • Reduces bleeding from cavities.
  • It can be used in a wide range of concentrations.
  • Excellent removability control.

Product Properties

Appearance Transparent liquid
Method D
Flash Point Not flammable

User Recommendations

NDT Method Post-emulsifiable fluorescent liquid penetrant inspection
Shelf life 3 years at T between 5°C and 45°C
Usage temperature From 4°C to 52°C
ASTM E165/UNI EN ISO 3452-1
Post-emulsifiable penetrants

Magisglow 22-27-46-54

Developer Rotrivel U − Velcontrast Dry Powder − Rotrivel H2O Paste
Accessories EN ISO 3452 Reference block type 1
Reference block type 2
Refractometer 101 ATC Model
